Product Introduction
FRT05 Series Pressure Spring Type Temperature Sensor are packaged with imported thin film,Used to measure the pressure spring mounted temperature sensor in bearing, mold and other environments.
Product Characteristics
Temperature factor：TK=3850ppm/k
Precision rating：1/3B级：T0℃≤0.10℃（0~150℃）
Level A：T0℃≤0.15℃（-50~300℃）
Level B：T0℃≤0.30℃（-200~500℃）
Insulation resistance：≥100MΩ@500V&20℃
Heat coefficient：0.4K/mW （0℃时）
Working current ：100Ω：0.3~1mA
500Ω：0.1~0.7mA
1000Ω：0.1~0.3mA
Pressure withstand standard：≥0.5MPa

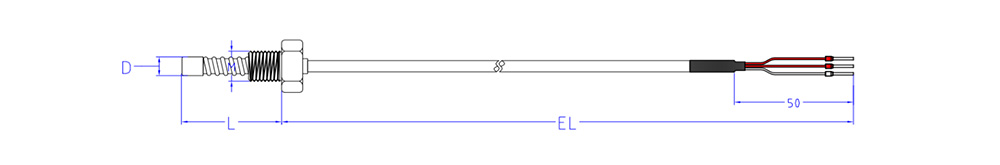

Product Diagram
